硬质合金可转位刀片/Carbide indexable inserts
适用于加工普钢，铸铁，不锈钢，耐热钢表面粗加工、半精加工及精加工，根据客户的不同需求选择不同的牌号。
Suitable for roughing, semi-finishing and finishing machining of general steel, cast iron,stainless steel,heat resistance steel.According to the different needs of our customers choose different grades.
推荐牌号Recommended grades：ZK30F、ZP50、ZM20。
一、铣削刀片：Milling inserts.
1.CNMA适用于粗加工/负型刀片80°菱角Apply in Rough processing / Blade 80 degree
|
照片????????????????????????????????? |
||||
型 ?号 |
尺 ?寸 |
|||
l |
d |
t |
R |
|
CNMA120408 |
12.0 |
12.7 |
4.76 |
0.8 |
CNMA120412 |
11.6 |
12.7 |
4.76 |
1.2 |
2.WNMA适用于粗加工/负型刀片80°Apply in rough processing/ Blade 80 degree
|
照片?????????????????????????????????? |
||||
型 ?号 |
尺 ?寸 |
|||
l |
d |
t |
R |
|
WNMA080408 |
8.3 |
12.7 |
4.76 |
0.8 |
WNMA080412 |
8.2 |
12.7 |
4.76 |
1.2 |

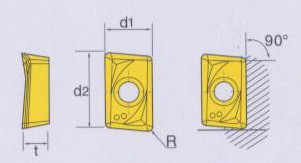

3.APMT PDER适用于模具钢加工Apply in Mold processing
|
照片????????????????????????????????????? |
|||||
型 ?号 |
尺 ?寸 |
||||
d |
d1 |
d2 |
t |
R |
|
APMT1135PDER |
11.25 |
6.22 |
2 |
3.5 |
0.8 |
APMT1604PDER |
16.40 |
9.22 |
1.7 |
4.76 |
0.8 |
二、车削刀片Turning inserts
|
|
|||||||
型号 |
尺 ?寸 |
||||||

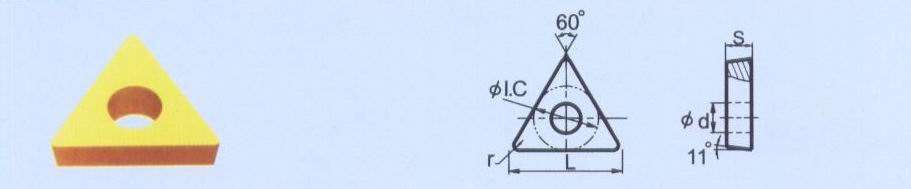

TPGA |
(ISO) |
(inch) |
L |
ФI.C |
S |
Фd |
r |
160308 |
322 |
16.5 |
9.525 |
3.18 |
4.2 |
0.8 |
|
|
||||||
型号 |
尺??寸 |
|||||
La |
L |
I.W |
S |
brn |
r |
|

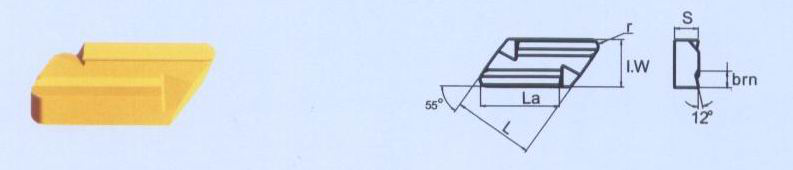

KNUX160405L11 |
16 |
16.15 |
9.525 |
4.76 |
2.2 |
0.5 |
KNUX160405L12 |
16 |
16.15 |
9.525 |
4.76 |
2.2 |
0.5 |
KNUX160405R11 |
16 |
16.15 |
9.525 |
4.76 |
3.2 |
1 |
KNUX160405R12 |
16 |
16.15 |
9.525 |
4.76 |
3.2 |
0.5 |
